Function Introduction
-
Identify multiple passports
Supports reading e-passports, native passports and other passports of more than 100 countries
-
Identify multiple documents
Supports the reading of more than 80 kinds of documents including domestic and foreign driver's licenses, visas, electronic homecoming permits, electronic Taiwan compatriots' permits, Hong Kong, Macao and Taiwan ID cards, Mainland permits for Hong Kong and Macao residents, and Mainland permits for Taiwan residents
-
Multiple reading methods
Support three reading methods: pure photo OCR recognition, pure card reading, photo + card reading
-

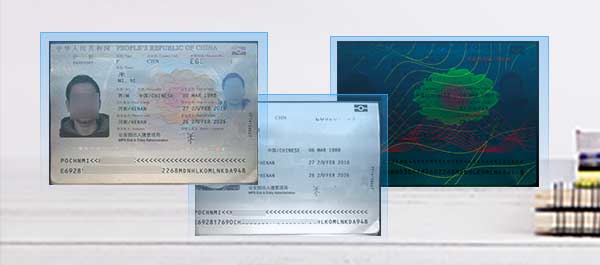

Multispectral imaging
Passport reader supports output of visible light, infrared light, ultraviolet light image
-
Extract personal avatars
The passport reader supports the extraction of personal avatars and chip avatars on the surface of documents
-
Support certificate authenticity inspection
Supports various authenticity features such as ultraviolet light feature inspection, infrared light feature inspection, chip data inspection, OCR data and electronic chip content cross-validation
-
Automatic Trigger, Automatic Reading and Classification
RFID reading supports automatic identification and classification of multiple certificates, automatic reading of certificate information and entry of certificate information into the system
-
Recognition of barcode and QR code
Passport reader supports identification of barcode and QR code (including mobile QR code)
-
Certificate Reading Within Few Seconds, High Accuracy
The e-passport card reading time is less than 3 seconds, the second-generation card reading time is less than 1 second, the identification accuracy rate of the document is as high as 99.8%, and the communication rate supports up to 848 Kbps
-
Support Secondary Development
Provide software development packages for windows, Linux and Android systems for secondary development; Provide calling routines in VC, VB, c#, Java and other languages
-
Anti-glare Interference
Remove the influence of anti-counterfeiting film and reflections to ensure that the color of the document is not distorted
-
System Compatibility and Strong Applicability
It can be integrated into various management application systems and used in various scenarios such as hotels, travel agencies, visitor management systems, airports, high-speed rail, customs, inspection and quarantine, diplomacy, public security, exhibitions, etc.
Product Superiority
Support Xinchuang PC operating system
- Passport reader supports Feiteng, Loongson, Zhaoxin and other chips, as well as domestically produced systems such as Kirin system and Tongxin UOS, and the price is independently controllable

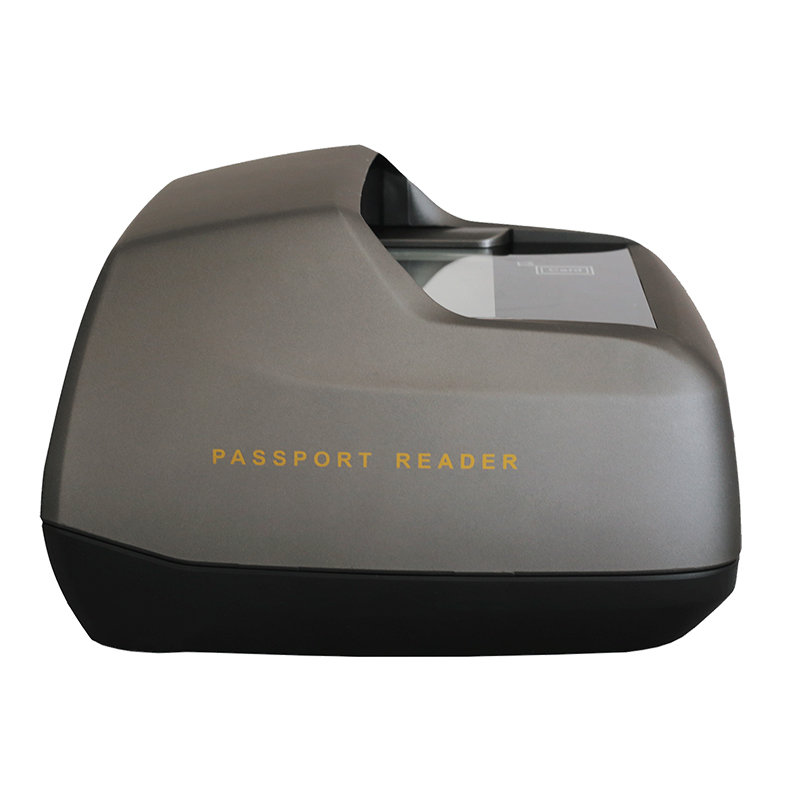

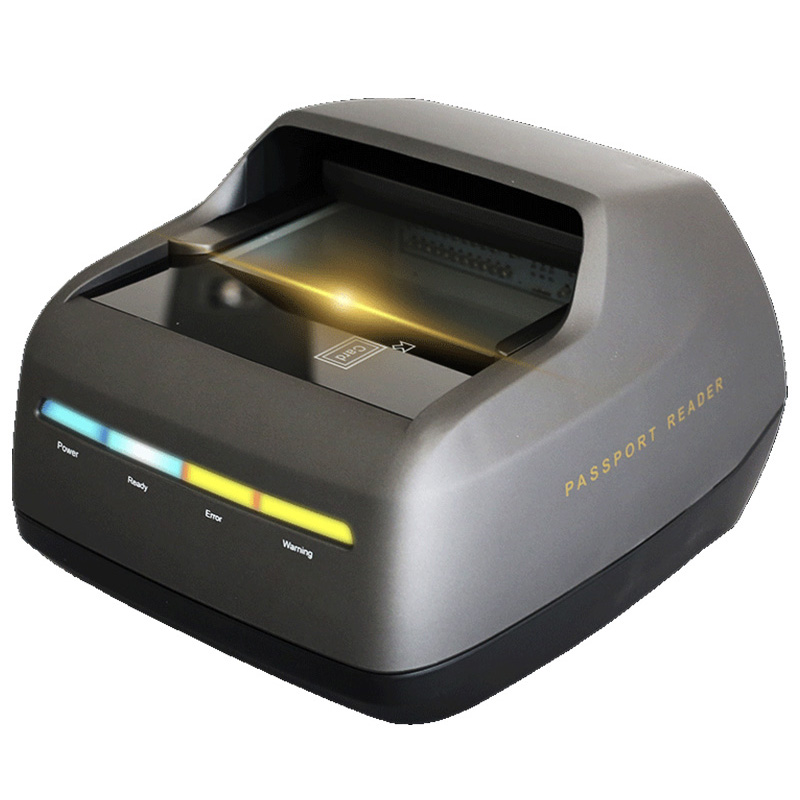

Snap connection, high quality material selection
- Silver gray collocation, exquisite and compact, curve design, full buckle connection, solid quality, 15 ° passport guide slot, professional high borosilicate glass, material selection, friction resistance, strong stability
Independent research and development, safe and reliable
- OCR certificate recognition, embedded software development, structural design, RFID card reading and debugging, image forgery detection and other completely independent research and development, safe and reliable
Anti-metal and signal interference
- Dual antenna design to prevent signal interference, anti-metal interference, can be integrated into various metal equipment
Flexible configuration of reading mode
- Under different reading modes, the card reading rate, the displayed text information and picture information are different, which are flexibly configured and suitable for different scenarios.
Qualified enterprise with strong strength
- Passed various industry certifications such as TravelSky certification, inspection report of the Ministry of Public Security, information security management system certification, and international certifications such as CE and FCC
Customizable services
- Passport readers can add new types of documents to identify different countries according to different needs of customers
Application Scenarios
- Departure tax refund
-
Departure tax refund
The passport reader is integrated and applied to the departure tax refund system and duty-free shops. Tourists present their ID cards, home-entry permits, Taiwan compatriots permits, and other documents for real-name tax refunds. The passport reader is automatically triggered, and the documents can be read in milliseconds to complete real-name authentication. Tourist tax refund efficiency.
Case
-
- Wintone passport reader applied to Ministry
-

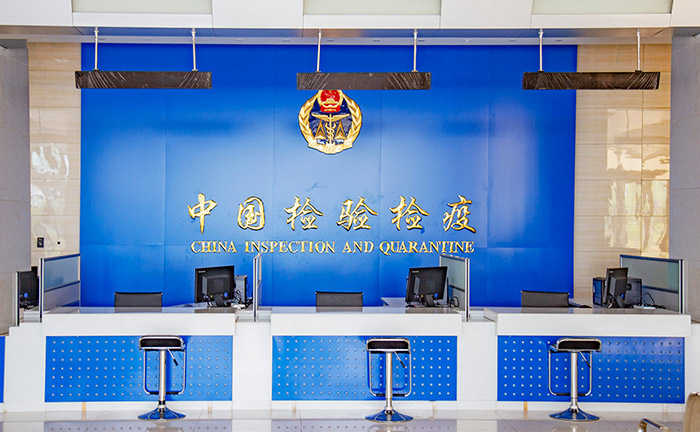

- Passport readers are used in customs clearance systems
-
- Wintone passport reader assists entry and exit border inspection
-
- Passport readers upgrade banking business intelligence
-
- Passport readers are used in major airports
-
- Passport reader enhances real-name system efficiency
-
- Passport reader helps hotel smart transformation
-
- Use passport readers to optimize travel check-in
Product parameters
-

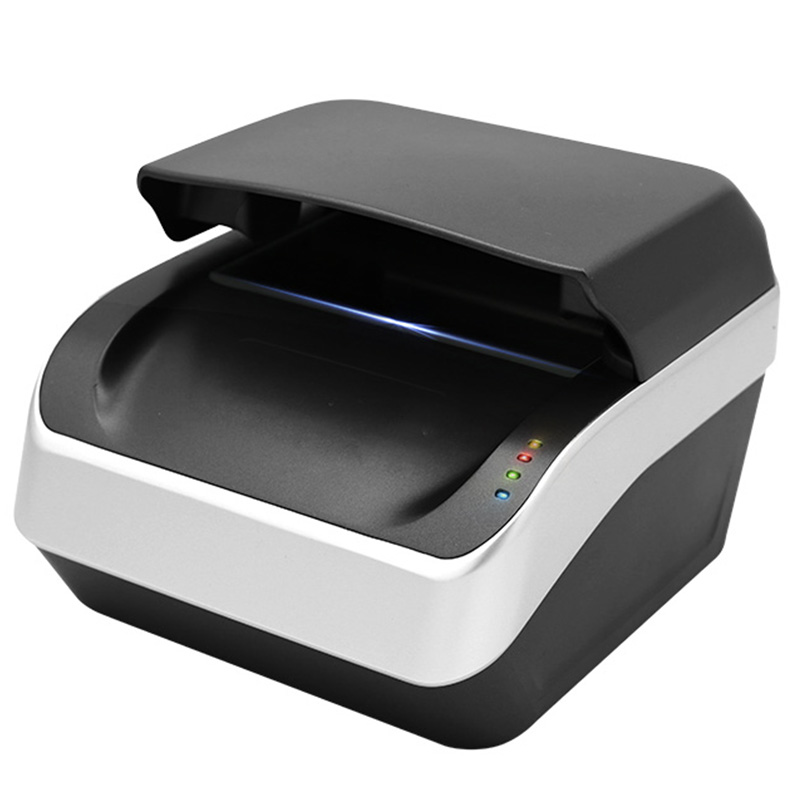

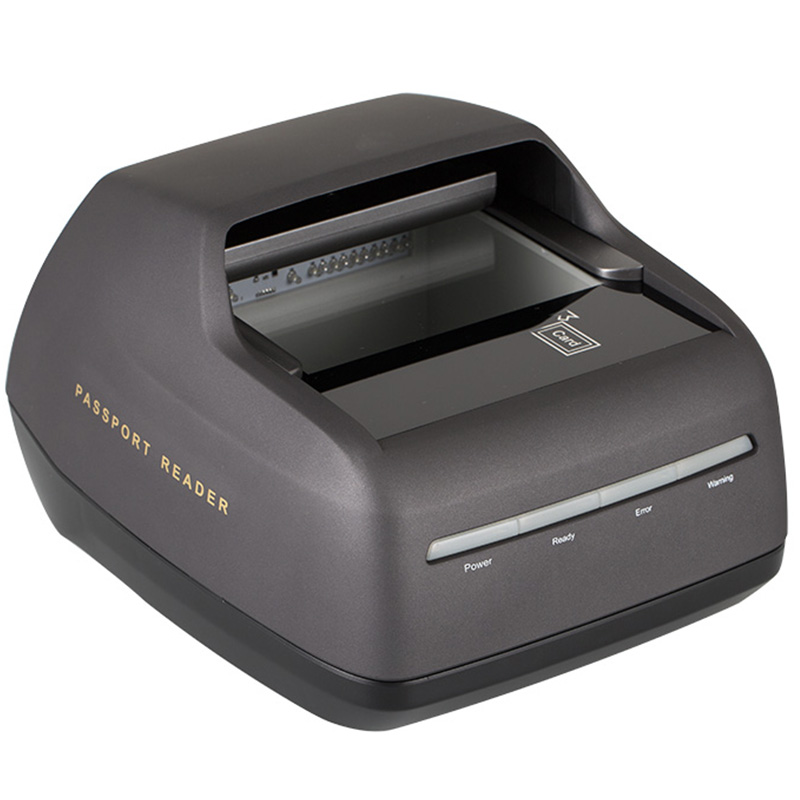

PSPR1000(I) Passport Reader
DetalisRFID Reading OCR Processing Visible Image IR Image UV Image Auto-Trigger - - √ √ - √ Project Description Image Acquisition Active scan area: 127mm x 96mm CMOS, 500 Megapixels （2048*1536） Resolution: 500 DPI Illumination sources Multi-band light source: Visible, IR(850nm) Document identification (OCR) Support image collection and information recognition of ID card, driver's license, passport, Hong Kong and Macao pass, Taiwan compatriot card, driving license and other ID cards Support image acquisition and information recognition of ICAO 9303 standard passport, visa and other travel documents, including machine-readable code and other layout information Support 1D and 2D barcode recognition Photo recognition speed is less than 1s E-passport card reading Support ICAO 9303 standard e-passport card reading, and the card reading time is less than 4 seconds Support ISO 14443 type A / b card reading Support basic access control (BAC) of e-passport Support passive authentication of e-passport and verify the authenticity of certificate information Support active authentication of e-passport and verify the authenticity of certificate chip Data communication The data communication interface is USB 2.0 Support USB interface expansion, can connect other USB devices on the device Auto-trigger Automatic detection of a document in a scanning area Status Indicators Four status indicator LEDs (for Power, Ready, Error, and Warning) Support customize indicators Software Complete OCR SDK including DLLs, OCXs Programming Language: VC, VB, C#, Java, etc. Power Input AC 100~240V 50~60Hz, 0.8A Output: DC 12V, 2A Environmental Humidity: 20% to 95% non-condensing Temperature: Operating: -10ºC to 50ºC Storage: -20ºC to 50ºC Hardware Dimension: 248*216*152mm Net Weight: 1.4kg Gross Weight: 2.6kg Movement available Movement available for flush mounting The whole machine has no moving parts, and the reliability is strong Warranty Provide 365*24 telephone, email, online technical support One-year hardware warranty, lifetime maintenance -
PSPR4200(I) Passport Reader
DetalisRFID Reading OCR Processing Visible Image IR Image UV Image Auto-Trigger - √ √ √ - √ Project Description Image Acquisition Active scan area: 127mm x 96mm CMOS, 500 Megapixels （2048*1536） Resolution: 390 DPI Illumination sources Multi-band light source: Visible, IR(850nm), UV Document identification (OCR) Support image collection and information recognition of ID card, driver's license, passport, Hong Kong and Macao pass, Taiwan compatriot card, driving license and other ID cards Support image acquisition and information recognition of ICAO 9303 standard passport, visa and other travel documents, including machine-readable code and other layout information Support 1D and 2D barcode recognition Photo recognition speed is less than 1s E-passport card reading Support ICAO 9303 standard e-passport card reading, and the card reading time is less than 4 seconds Support ISO 14443 type A / b card reading Support basic access control (BAC) of e-passport Support passive authentication of e-passport and verify the authenticity of certificate information Support active authentication of e-passport and verify the authenticity of certificate chip Data communication The data communication interface is USB 2.0 Support USB interface expansion, can connect other USB devices on the device Auto-trigger Automatic detection of a document in a scanning area Status Indicators Four status indicator LEDs (for Power, Ready, Error, and Warning) Support customize indicators Software Complete OCR SDK including DLLs, OCXs Programming Language: VC, VB, C#, Java, etc. Power Input AC 100~240V 50~60Hz, 0.8A Output: DC 12V, 2A Environmental Humidity: 20% to 95% non-condensing Temperature: Operating: -10ºC to 50ºC Storage: -20ºC to 50ºC Hardware Dimension: 248*216*152mm Net Weight: 1.5kg Gross Weight: 2.7kg Movement available Movement available for flush mounting The whole machine has no moving parts, and the reliability is strong Warranty Provide 365*24 telephone, email, online technical support One-year hardware warranty, lifetime maintenance -
EPR5100(I) Passport Reader

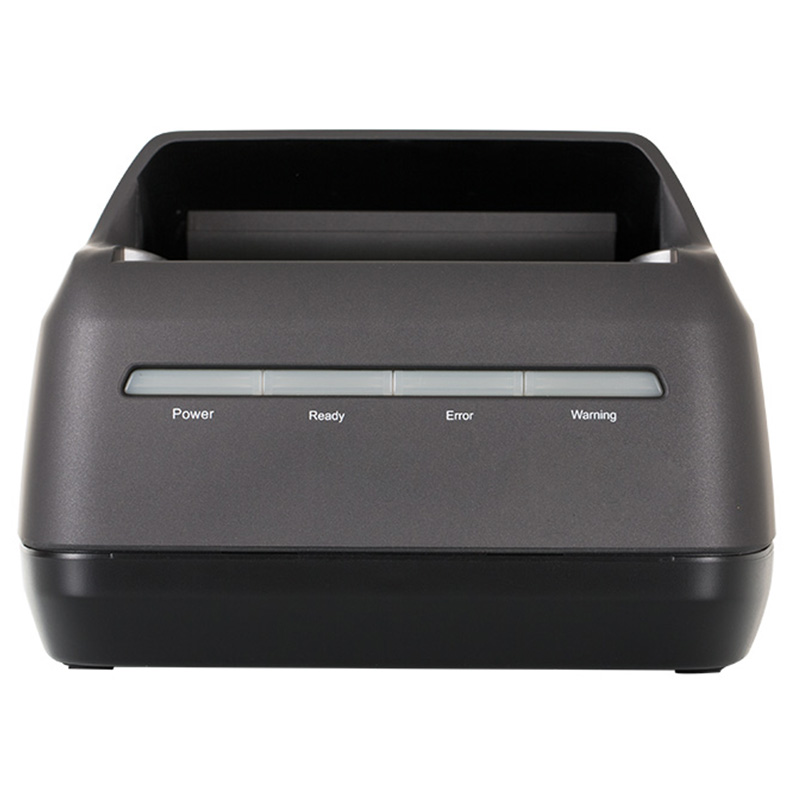

DetalisRFID Reading OCR Processing Visible Image IR Image UV Image Auto-Trigger - √ √ √ √ √ Project Description Image Acquisition Active scan area: 127mm x 96mm CMOS, 500 Megapixels （2048*1536） Resolution: 500 DPI Illumination sources Multi-band light source: Visible, IR(850nm) OCR Recognition Support extract data and image from ICAO 9303 Standard compliant documents and other Non-ICAO 9303 Standard compliant document, like ID card, Driver's License, Passport, Exit-entry Permit to HK/Macau, and etc by OCR Support 1D, 2D barcode recognition Scanning speed less than 1 second Data communication The data communication interface is USB 2.0 Support USB interface expansion, can connect other USB devices on the device Auto-trigger Automatic detection of a document in a scanning area Status Indicators Four status indicator LEDs (for Power, Ready, Error, and Warning) Support customize indicators Software Complete OCR SDK including DLLs, OCXs Programming Language: VC, VB, C#, Java, etc. Power Input AC 100~240V 50~60Hz, 0.8A Output: DC 12V, 2A Environmental Humidity: 20% to 95% non-condensing Temperature: Operating: -10ºC to 50ºC Storage: -20ºC to 50ºC Hardware Dimension: 248*216*152mm Net Weight: 1.5kg Gross Weight: 2.7kg Movement available Movement available for flush mounting The whole machine has no moving parts, and the reliability is strong Warranty Provide 365*24 telephone, email, online technical support One-year hardware warranty, lifetime maintenance
