Product License Plate Recognition Camera ALPR Camera
  • LPR Camera
  • ANPR Camera
  • ALPR Camera
  • Thailand LPR Camera

Function Introduction

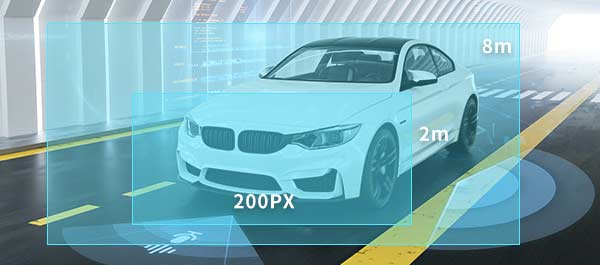

Wide Recognition Range

Choose different specifications of lenses according to your needs, the recognizable area distance is 2-8 meters, and multiple license plates can be recognized at the same time in the field of view

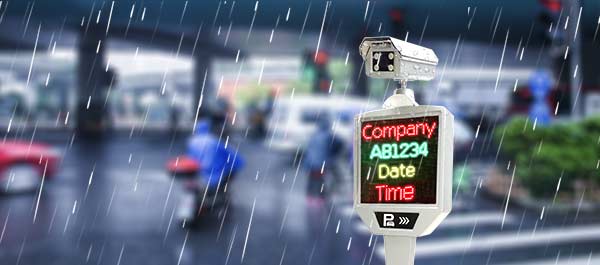

The Algorithm Has a Powerful Abnormality Processing Function

For the Automated License Plate Reader under abnormal phenomena such as no license plate, defaced license plate, yin and yang license plate, and adverse weather conditions, the system will activate the abnormality processing or fuzzy matching function to optimize the recognition results.

Wide Dynamic Image Sensor

Clearer license plate images in complex scenes such as nighttime, backlight, reflection, and large angles

Dual output intelligent voice chip

"Yuyin Tianxia" voice chip can be customized to broadcast any character content, and supports multiple broadcast forms such as sequential queuing broadcast, priority broadcast broadcast, etc.

Provide Standard Interface

Provide standard interfaces for users to expand applications

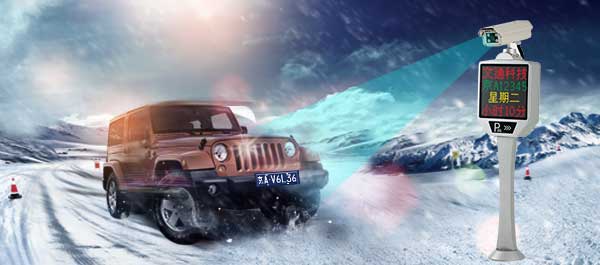

Stable and Reliable Quality

IP66 protection grade, support for use in harsh environments such as rainy days and blizzards, and can be used in temperatures from -35°-85°

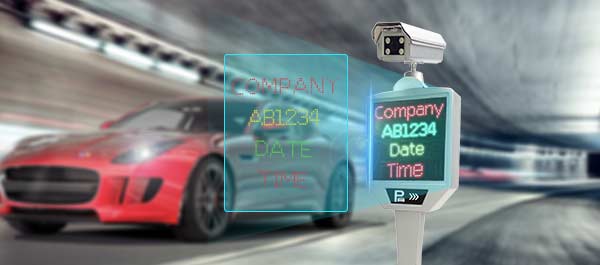

Four Line Color Tempered Glass Display Screen

The four line color toughened glass display screen is friction resistant and shows fashion and beauty. The outdoor display is clearer, and it supports custom setting display content

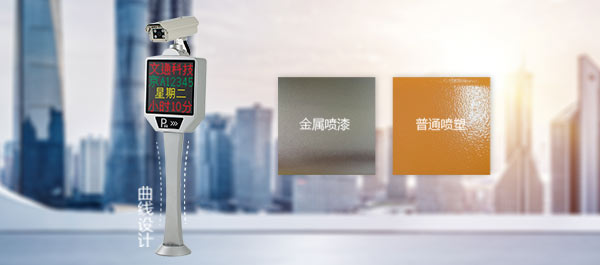

Curved Appearance Design, Metal Painting Process

1.5mm galvanized sheet material, no rust for a long time, stable and strong; curved shape, rounded arc design, silver/Akesu outdoor powder, metal spray paint process, long light resistance time, not easy to fade

Product Superiority

Patented Cardan Shaft Design
Patented universal shaft, aluminum alloy material, not easy to rust, separate mold opening, exquisite appearance; one person can adjust and install, saving time and labor costs
Component Quality Assurance
Core components control cards, voice chips, power supplies, and motherboards are all well-known brands, and the quality is guaranteed
High Accuracy of License Plate Recognition
Built-in Automated License Plate Reader algorithm independently developed by Wintone technology based on deep learning, comprehensive Automated License Plate Reader rate ≥ 99.9%
Fast Recognition Speed
Using two recognition modes: video stream, video stream + ground sense, the video recognition speed reaches 25 frames/S, the picture recognition speed reaches 15 frames/S, and the delay time is within 100-200ms
Strict Quality Control
Each equipment undergoes strict shock testing, high and low temperature testing, humidity testing, transportation testing and other hardware quality control processes and software testing
Gold Service
Provide on-site inspection, equipment installation and debugging guidance, regular inspection, life-long equipment maintenance and other services, all-day customer service on duty, and timely response to after-sales calls

Application Scenarios

  • Unattended weighing
  • Intelligent charging pile
  • 4S store entrance
  • Smart gas station
  • Smart unattended car wash
  • Community Villa
  • Government agency
  • Smart Logistics Park
Unattended weighing

Wintone intelligent Automated License Plate Reader all-in-one machine adopts the embedded system with DSP as the core, and applies the modular structure of embedded Automated License Plate Reader ehicle entry and exit and cargo transportation. The vehicle can quickly, accurately, safely complete the wholeand the data transmission mode of network and TCP/IP protocol. It can automatically detect vehicles and obtain vehicle information without industrial control computer, and send the data to the system host through the network to realize intelligent management of v weighing process stably and reliably, and realize the full intelligence of data collection in the measurement process.

Intelligent charging pile

Wintone parking lot management system integrates the "huihaotong" Automated License Plate Reader integrated machine, license plate recognition and billing software, and intelligent road gate. It is interconnected with the data of the intelligent charging pile operation platform to obtain the data of whether the vehicle is charged and the charging time in real time, and realize the functions of charging and parking fee reduction, no charging charge or short charging and long-term charging and long-term parking fees at the time of exit, so as to ensure the use efficiency and parking efficiency of the charging pile, solve the problem of fuel vehicles occupying the charging potential Short charge and long stop and other prominent problems that affect the revenue of charging operation.

4S store entrance

Install the "Huihaotong" Automated License Plate Readerintegrated machine at the entrance and exit of the 4S store to monitor the vehicles entering the store in real time, quickly capture vehicle data through license plate recognition technology, display the information of entering vehicles in real time, and upload them to the store management system at the same time. The 4S store management system is connected, and the service consultant retrieves vehicle information such as owner information and insurance expiry time from the management system, follows up with customers in a targeted manner, assists customers in completing repairs, maintenance, car purchases and other services, and provides each customer with Precise marketing management services create value for stores while improving service efficiency.

Smart gas station

Applying the "Huihaotong" Automated License Plate Reader all-in-one machine, through integrated applications, intelligent payment experiences such as sensorless license plate payment and face payment can be realized. After the license plate recognition results are obtained, the system can collect and analyze the big data of the vehicles that are usually refueled, so as to carry out precise marketing and bring more loyal customers to the gas station, more and more gas stations begin to apply automatic car washing equipment. Provide free car wash service for vehicles that reach a certain amount of refueling, quickly and accurately determine whether the vehicle is eligible for free automatic car wash, so as to control the equipment to automatically lift the bar. The whole process does not require manual intervention, which is convenient and fast.

Smart unattended car wash

Install the Wintone "Huihaotong" Automated License Plate Reader at the entrance of the self-service car wash. Before the vehicle enters the car wash, the license plate recognition camera quickly captures and recognizes the license plate information, and automatically uploads the license plate number to the self-service car wash system. The recognition camera will match the acquired license plate information with the reservation information in the system, and provide the corresponding automatic car wash service, which greatly shortens the user's queuing time. "Huihaotong" has undergone strict rain experiments and has an IP66 protection level to ensure license plate recognition. The camera can work stably and continuously in a high-humidity application environment. The license plate recognition camera assists the self-service car wash to operate 24 hours a day without interruption, which improves user satisfaction and the revenue of the car wash.

Community Villa

Aiming at the characteristics of residential management such as residential villas, Wintone has launched an intelligent parking lot management terminal, which integrates the "Huihaotong" Automated License Plate Reader, license plate recognition and billing software, and intelligent road gates. The system installation and debugging threshold is low, stable and reliable, and It perfectly supports management methods such as multiple vehicles per person in the community, flexible authorization of entrances and exits, and nested parking. The Wintone intelligent parking lot management system can provide a system interface to connect with the smart community platform, so as to realize the seamless connection between parking lot management and smart property. "Huihaotong" license plate recognition integrated machine, unique industrial curve design, fashionable and high-end, placed at the entrance and exit of residential villas, showing beauty and fashion.

Government agency

In view of the difficulty of vehicle management in government agencies and institutions, Wintone Technology has launched an offline solution for theAutomated License Plate Reader parking lot management system. Users can whitelist the number of fixed vehicles such as internal employee vehicles and leading vehicles according to their needs, and the whitelisted vehicles can enter and leave the parking lot. The system automatically recognizes the license plate number, compares it with the white list, and automatically releases the gate if the comparison is successful; the parking lot management system will prompt unauthorized vehicles and prohibit entry when foreign vehicles enter; the offline version of the parking lot management system has a simple structure, Stable and reliable performance, easy installation, maintenance and use. In addition, Wintone Automated License Plate Reader technology supports the identification of military license plates, police license plates and other special license plates, and the recognition rate is at a high level in the industry. The parking lot management system integrates the "Huihaotong"Automated Automated License Plate Reader and billing software, and intelligent road gates. The unique industrial curve design is fashionable and high-end. It is placed at the entrance and exit of government agencies and units, which is more solemn.

Smart Logistics Park

For the unloading platform of the logistics park, Wintone launched the "Huihaotong"Automated License Plate Reader, which can accurately identify the license plate number of the loading and unloading vehicles. It can provide a system interface with the intelligent parking lot system at the same time, and connect to the intelligent logistics business management platform. Gate control and loading and unloading truck dispatch business process.

Case

License plate recognition camera applied to smart logistics park platform
LPR camera enables unattended weighbridge management and scientific weighing overload management

Product parameters

  • LPR Camera
    Imaging device Power supply Shell material Protection class Recognition distance
    Wide dynamic CMOS image sensor POE powered Aluminum alloy IP66 2-8 meters
    Detalis
    Imaging device 1/2.7-inch, 2-megapixel low-light, wide dynamic CMOS image sensor
    Image adjustment Exposure gain automatic adjustment
    lens Fixed focus 6mm M12 interface (different focal length lenses are optional)
    Fill light White light LED always bright fill light, fill light distance 2m-8m
    Video compression format  H.264、MJPEG
    Video output 1080P(1920x1080), 720P(1280x720), D1(704x576), CIF(352x288) frame rate and resolution can be configured according to bandwidth
    Image output 2 million pixel JPEG
    Communication interface  10/100M network adaptive, RJ45 network interface, built-in 4G (full Netcom), WIFI2.4G (4G and WIFI optional)
    Audio interface Audio output, speech synthesis (male and female voices can be configured)
    Serial interface 1 channel RS485
    IO interface 2-way optocoupler isolation input, 2-way relay output, button to restore factory settings
    Power supply mode External power input (DC12V/2A)/POE power supply Comply with IEEE802.3AT PD standard (maximum 12W)
    Equipment power fixed 10W
    Protection class IP66
    Shell material aluminum alloy
  • ANPR Camera
    CPU frequency Memory Built-in storage GPU Sensor version
    4 cores 1.5GHz 2G/1G 8/4GB Rockchip RV1126  Sony IMX327
    Detalis
    Model EP-B622 (4\6\8\12\16\25)
    Department; EP-B652 (4\6\8\12\16\25)
    Department; EP-B652 (B)
    Module MV6B-A(4\6\8\12\16\25)，MV6B-B(4\6\8\12\16\25)
    MV6B-B(B)
    Motherboard Main chip: RV1126 4-core CPU, 1-core NPU, main frequency 1.5GHz
    DDR: 2 Samsung 512MB, total 1GB
    eMMC: 1 Samsung 4GB storage
    Sensor version Sony IMX327,
    200W 1/2.8 inch, WDR, starlight CMOS image sensor
    Interface board Power interface, SD card interface, network interface,
    Function interface (1 IO input, 1 relay output, 1 RS485)
    Expansion board 3-way IO input, 2-way relay output, 1-way RS485, 1-way MIC, 1-way passive speaker, 1-way active speaker
    Light board 4 imported CREE high-brightness white LED lamp beads, up to 30m
    Fixed focus lens 200W 4mm, 6mm, 8mm, 12mm, 16mm, 25mm fixed focus lens aperture F1.6 (except 25mm)
    Zoom lens 200W zoom 3-25m, aperture F1.6
  • ALPR Camera
    Sheet Metal Material/Thickness Memory CPU frequency Communication method Voice broadcast Protection configuration
    Galvanized sheet/ 1.5mm 2GB 4-core 1.6GHz 4G/RJ45、RS485 "Yuyin Tianxia" voice chip Waterproof groove + hard foam + heaven and earth lock
    Detalis
    Dimensions 360x1460mm
    Weight Box packing 14kg, column packing 7.5kg
    Plastic powder Silver/
    Aksu Outdoor Powder
    Imaging parameters Sensor dynamic range 95db
    LED screen Four lines, three colors, 4 characters width, 450cd/m2 brightness adjustable
    Speech synthesis Support any Chinese and English playback, power 8W, volume adjustable
    Input 100-240VAC
    Total power 50W
    Operating temperature -35 to 85 degrees Celsius
    Protection class IP65
    Communication method RJ45、RS485
    Secondary development Support Windows platform C++\Java\C#\Delphi secondary development
    Sheet metal material/thickness Galvanized sheet/1.5mm
    Memory 1GB (standard version), 2GB (high version)
  • Thailand LPR Camera
    Types of License Plate Recognition recognition distance recognition rate Unlicensed Vehicle Detection Vehicle Characteristics Recognition Recognition method
    White, yellow, red, green , colored license plate 2-30 meters ≥99% support Vehicle model , vehicle label r, vehicle color recognition Video automatic identification, external signal triggered identification
    Detalis
    Parameter name Parameter specification
    Product Name Wintone All-in-One International License Plate Recognition System v7.0
    Processor ARM Quad-core processor,  NPU (computing power 2.0 TOPS).
    Internal Storage 4GB
    RAM 1G
    4G Function Support 4G network
    Sensor Type 1/2.8 inches; Sony 500W pixels, Low illumination, Starlight level, Wide dynamic range CMOS image sensor
    Lens Standard fixed focus 4mm lens; Optional fixed focus 6mm, 8mm, 12mm, 16mm, 25mm lenses
    Fill Light Two LED beads, White light, Fill light distance up to 35 meters
    Recognition Rate ≥99.9%
    Recognition Distance 2-30 meter
    License Plate Recognition Types White number plate
    Yellow number plate
    Red number plate
    Green number plate
    Color number plate
    Unlicensed Car Detection Support
    Vehicle Feature Recognition Vehicle model recognition, Vehicle logo recognition, Vehicle color recognition
    Identification Method Automatic video recognition, External signal trigger recognition
    Video Resolution 2592*1944, 1920*1080, 1280*720, 720*576(D1), 320*240(CIF)
    Picture Output 5 Megapixel, JPEG format
    Video Encoding Format H.264、H.265、MJPEG
    Video Encoding Standards Sub-Stream：H.264（Baseline）
    Internet 10/100M Network adaptive; RJ45 Network interface
    Storage Card Support SD2.0 standard MicroSD card; Maximum capacity support 64G
    I/O Support 1-Channel input, Support 2-Channel relay output
    RS485 Maximum support 1-Channel
    Audio Output Support 1-channel audio output; Active or Passive (maximum 3W) optional
    Reset Support
    Power DC 12V/2A
    Power Consumption ≤10W
    Operating Temperature -25℃~70℃
    Protection Rating IP66
    EMC ESD: Contact 6KV, Air 8KV      Surge: 3KV"
    Dimension 12 inch standard shield with sunshade; 377*130.3*102.3mm
    Weight 1.75kg
    Packaging Dimension 420*180*143mm
    Total Weight 2.05kg
    Protocol Support Support RTSP video streaming protocols ONVIF, GAT1400, GB28181, Support uploading recognition results via HTTP and TCP, Support RS485 protocol, Support Camyun camera management platform HTTP API"
    SDK Support Linux:C\C++、TCP/IP、   JAVA
    Client End Support login from multiple browsers, Support login to the Camyun camera management platform, mobile browser, Camyun camera management WeChat Program
