Product Passport reader Ultra-Thin Embedded Passport Reader
  • KR160 Passport Scanner
  • KR420 Passport Scanner
  • KR530 Passport Scanner
  • KR530(B) Passport Scanner
  • KR500(C) ID Card Scanner

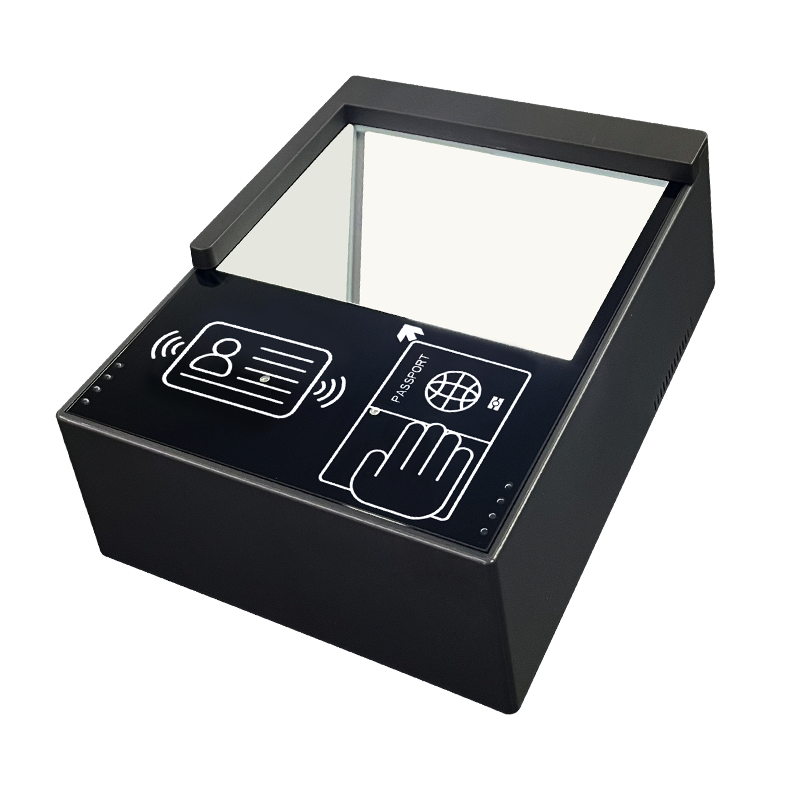

  • Ultra-Thin Embedded Passport Reader

Function Introduction

Supports for reading e-passports of more than 200 countries in line with the global ICAO DOC 9303 standard, paper passports and more than 80 kinds of documents including domestic and foreign driver's licenses, visas, Hong Kong and Macao identity cards, home visit permits, Taiwan compatriot certificates, and so on
Multiple document recognition

Supports for reading e-passports of more than 200 countries in line with the global ICAO DOC 9303 standard, paper passports and more than 80 kinds of documents including domestic and foreign driver's licenses, visas, Hong Kong and Macao identity cards, home visit permits, Taiwan compatriot certificates, and so on

Supports image data checking, OCR data checking, chip data checking and cross-checking.
Support document authenticity checking

Supports image data checking, OCR data checking, chip data checking and cross-checking.

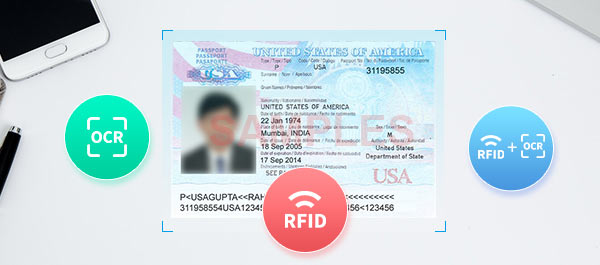

Offers three reading modes: OCR recognition via photo, card reading only, and a combination of photo and card reading.
Multiple Reading Modes

Offers three reading modes: OCR recognition via photo, card reading only, and a combination of photo and card reading.

Supports the output of visible light, infrared, and ultraviolet images.
Multi-Spectral Imaging

Supports the output of visible light, infrared, and ultraviolet images.

Capable of extracting personal photos from both the document surface and embedded chips.
Extract Personal Photos

Capable of extracting personal photos from both the document surface and embedded chips.

Automatically identifies and categorizes multiple document types, reading and uploading document information into the system.
Automatic Triggering and Categorization

Automatically identifies and categorizes multiple document types, reading and uploading document information into the system.

Support for recognition of barcodes and QR codes (including cell phone QR code), through the light-sensitive sensor technology, to effectively avoid cell phone NFC mistakenly triggered by other apps to affect the barcode reading
Barcode/QR Code Recognition

Support for recognition of barcodes and QR codes (including cell phone QR code), through the light-sensitive sensor technology, to effectively avoid cell phone NFC mistakenly triggered by other apps to affect the barcode reading

Achieves a recognition accuracy rate of 99.8% with a communication rate of up to 848 Kbps.
Fast and Accurate Document Reading

Achieves a recognition accuracy rate of 99.8% with a communication rate of up to 848 Kbps.

The innovative application of the passport reader integrates document recognition and QR code/barcode recognition technology. One device can identify all types of identity carriers. The space layout is small and compact, and it is easy to integrate.
Integrated reading equipment

The innovative application of the passport reader integrates document recognition and QR code/barcode recognition technology. One device can identify all types of identity carriers. The space layout is small and compact, and it is easy to integrate.

Offers SDKs for Windows, Linux, and Android for secondary development, along with examples in languages such as VC, VB, C#, and Java.
Support Secondary Development

Offers SDKs for Windows, Linux, and Android for secondary development, along with examples in languages such as VC, VB, C#, and Java.

Removes anti-counterfeiting film and reflective interference, ensuring accurate document color reproduction.
Anti-Glare Interference

Removes anti-counterfeiting film and reflective interference, ensuring accurate document color reproduction.

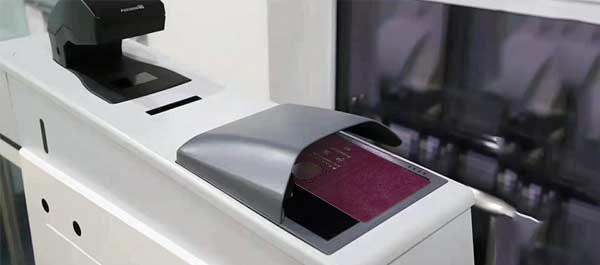

Can be embedded into various self-service devices such as security gates, ticketing machines, and VTMs. It is widely used in hotels, travel agencies, visitor management, airports, high-speed rail stations, customs, diplomacy, public security, and exhibitions.
System Compatibility and Versatility

Can be embedded into various self-service devices such as security gates, ticketing machines, and VTMs. It is widely used in hotels, travel agencies, visitor management, airports, high-speed rail stations, customs, diplomacy, public security, and exhibitions.

Product Superiority

Fine design, more compact appearance
Fine design, more compact appearance
Fine design, more compact appearance
The passport reader supports chips such as Feiteng, Longxin and Zhaoxin, as well as domestic systems such as Kirin system and Tongxin UOS. The price is independent and controllable
Support Xinchuang PC Operating System
The passport reader supports chips such as Feiteng, Longxin and Zhaoxin, as well as domestic systems such as Kirin system and Tongxin UOS. The price is independent and controllable
OCR document recognition, embedded software development, structural design, and RFID card reading adjustment are all independently developed, ensuring security and reliability.
Independently Developed and Secure
OCR document recognition, embedded software development, structural design, and RFID card reading adjustment are all independently developed, ensuring security and reliability.
Dual antenna design prevents signal and metal interference, making it suitable for integration into various metal devices
Anti-Metal and Signal Interference
Dual antenna design prevents signal and metal interference, making it suitable for integration into various metal devices
Different reading modes allow for adjustable card reading speeds, text display, and image information, making it adaptable to various scenarios.
Flexible Reading Mode Configuration
Different reading modes allow for adjustable card reading speeds, text display, and image information, making it adaptable to various scenarios.
The SR Passport Reader is an innovative application that combines document recognition and QR code/barcode recognition technology to recognize all types of identity carriers in a single device with a compact and easy-to-integrate layout.
All-in-one device for easy integration
The SR Passport Reader is an innovative application that combines document recognition and QR code/barcode recognition technology to recognize all types of identity carriers in a single device with a compact and easy-to-integrate layout.
The passport reader features 5 million pixels and achieves a physical resolution of 500 DPI, eliminating the effects of light spots with dual light sources.
High-Definition Imaging
The passport reader features 5 million pixels and achieves a physical resolution of 500 DPI, eliminating the effects of light spots with dual light sources.
Includes several models, such as SR690, SR580, SR460, SR240, and SR190, catering to the needs of different customer groups.
Multiple Models
Includes several models, such as SR690, SR580, SR460, SR240, and SR190, catering to the needs of different customer groups.
Equipped with USB and Type-C interfaces, offering high-speed data transfer capabilities. The compact Type-C interface is highly protective, saving device space and ensuring stability and durability during use.
High-speed transmission, rich interface
Equipped with USB and Type-C interfaces, offering high-speed data transfer capabilities. The compact Type-C interface is highly protective, saving device space and ensuring stability and durability during use.

Application Scenarios

  • Digital Currency
  • Customs
  • Immigration Control
  • Banking
  • Airports
  • High-Speed Rail
Digital Currency

Integrated into digital currency exchange machines, enabling domestic and international users to use second-generation IDs, passports, and other identification documents for real-name authentication. This supports currency exchange options, including foreign bank cards to RMB or NFC cards, and digital currency accounts, facilitating easier use for foreign guests while preventing counterfeit document exchanges.

Customs

Helps customs officers verify passport information quickly and accurately during luggage inspections, speeding up the process and reducing manual labor.

Immigration Control

The device can automatically recognize and classify various documents, improving the efficiency and user experience during immigration processing.

Banking

Integrates into banking self-service terminals, enhancing customer identity verification and simplifying processes such as account opening and transactions.

Airports

Utilized in self-service check-in counters, this device speeds up passenger processing by quickly recognizing boarding passes and identity documents.

High-Speed Rail

Installed in self-service ticketing machines at high-speed rail stations, it enables domestic and international passengers to efficiently purchase or collect tickets using various documents, including ID cards, passports, and military certificates.

Case

License plate recognition camera applied to smart logistics park platform
Credential recognition improves telecom authentication efficiency
Wintone OCR empowers enterprise dealer system digitization

Product parameters

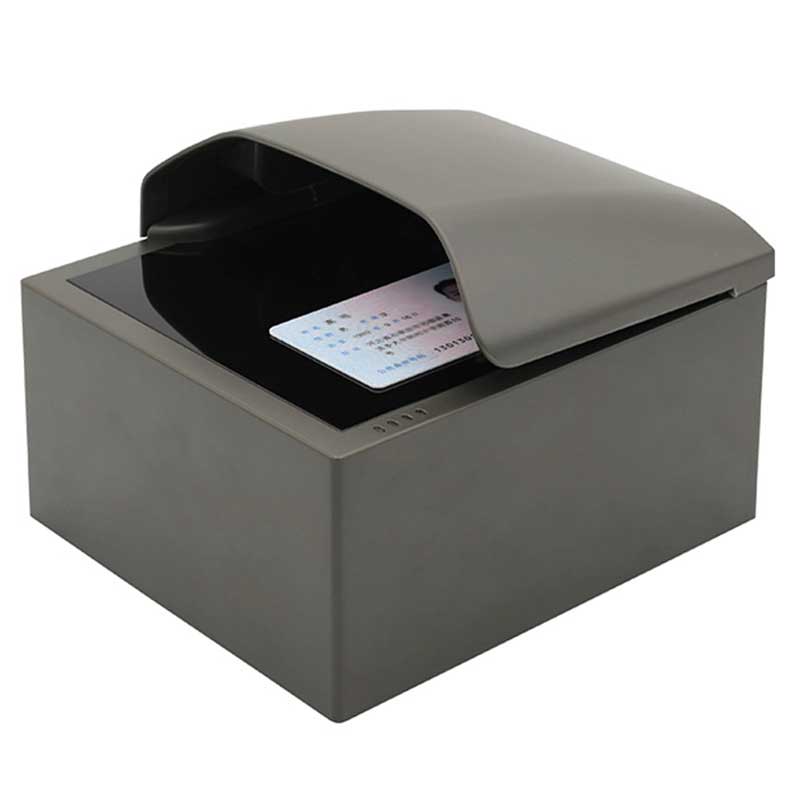

  • KR160 Passport Scanner
    RFID Reading OCR Processing Visible Image IR Image UV Image Auto-Trigger
    - √ √ √ - √
    Detalis
    Illumination sources Visible, IR(850nm)
    Anti-glare Elimination of glare from holographic anti-counterfeiting film and reflection of light
    Image Acquisition Active scan area: 127mm x 88mm
    CMOS, 500 Megapixels (2592*1944)
    Imaging Color Depth: 24 bits/pixels
    Resolution: 500 DPI
    Image Format: JPEG, BMP, PNG
    Crop for Headshot Cropping of a document headshot image from a general image
    OCR Recognition Support extract data and image from ICAO 9303 Standard compliant documents and other Non-ICAO 9303 Standard compliant document, like ID card, Driver's License, Exit-entry Permit to HK/Macau, and etc by OCR
    Barcode:
    1D: Code 128, Code 39, EAN-13, and etc
    2D: PDF417, QR, DataMatrix™, and etc
    Scanning speed less than 1 second
    RFID Read and write contactless ICs according to ISO/IEC 14443-S (Type A/B)
    Support e-passport Basic Access Control(BAC)
    Support active/passive authentication
    Machine Readable Zone ICAO 9303 Standard compliant documents:
    ID-1
    ID-2
    ID-3
    Non-ICAO 9303 Standard compliant documents issued by China
    IP Rating IP50
    Data Communication Compatible USB 2.0, USB 3.0, PC/SC
    Communication Speed Up to 848kbps
    Auto-trigger Automatic detection of a document in a scanning area
    Auto-classification Automatic recognition of a ID document type
    Status Indicators Four status indicator LEDs (for Power, Ready, Error, and Warning)
    Support customize indicators
    Sound Buzzer
    Software Complete OCR SDK including DLLs, OCXs, Websocket, and Demo program
    Programming Language:
    VC, VB, C#, Java, etc. Provide OCR SDK for Linux.
    Power Input AC 100~240V 50~60Hz, 0.8A
    Output: DC 12V, 2A
    Environmental Humidity: 20% to 95% non-condensing
    Temperature:
    Operating: -10ºC to 50ºC
    Storage: -20ºC to 50ºC
    OS compatibility Windows® 2000-SP4  ，Windows® XP  ，Windows® Vista, Windows®7, Windows®8, Windows®10, and Linux®
    Hardware Dimension: 193.2*166*104.3mm
    Net Weight: 1.30Kg  Gross Weight: 2.11Kg
    Warranty 1 year warrany, extensible

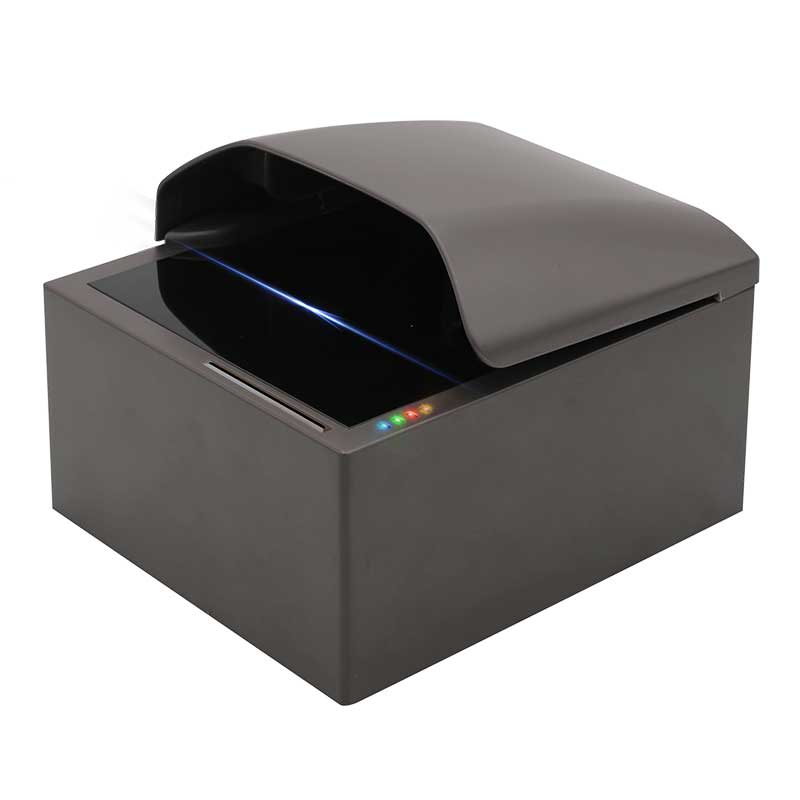

  • KR420 Passport Scanner
    RFID Reading OCR Processing Visible Image IR Image UV Image Auto-Trigger
    √ √ √ √ - √
    Detalis
    Illumination sources Visible, IR(850nm)
    Anti-glare Elimination of glare from holographic anti-counterfeiting film and reflection of light
    Image Acquisition Active scan area: 127mm x 88mm
    CMOS, 500 Megapixels (2592*1944)
    Imaging Color Depth: 24 bits/pixels
    Resolution: 500 DPI
    Image Format: JPEG, BMP, PNG
    Get the headshot from the chip
    Crop for Headshot Cropping of a document headshot image from a general image
    OCR Recognition Support extract data and image from ICAO 9303 Standard compliant documents and other Non-ICAO 9303 Standard compliant document, like ID card, Driver's License, Exit-entry Permit to HK/Macau, and etc by OCR
    Barcode:
    1D: Code 128, Code 39, EAN-13, and etc
    2D: PDF417, QR, DataMatrix™, and etc
    Scanning speed less than 1 second
    RFID Read and write contactless ICs according to ISO/IEC 14443-S (Type A/B)
    Support e-passport Basic Access Control(BAC)
    Support active/passive authentication
    Machine Readable Zone ICAO 9303 Standard compliant documents:
    ID-1
    ID-2
    ID-3
    Non-ICAO 9303 Standard compliant documents issued by China
    IP Rating IP50
    Data Communication Compatible USB 2.0, USB 3.0, PC/SC
    Communication Speed Up to 848kbps
    Auto-trigger Automatic detection of a document in a scanning area
    Auto-classification Automatic recognition of a ID document type
    Status Indicators Four status indicator LEDs (for Power, Ready, Error, and Warning)
    Support customize indicators
    Sound Buzzer
    Software Complete OCR SDK including DLLs, OCXs, Websocket, and Demo program
    Programming Language:
    VC, VB, C#, Java, etc. Provide OCR SDK for Linux.
    Power Input AC 100~240V 50~60Hz, 0.8A
    Output: DC 12V, 2A
    Environmental Humidity: 20% to 95% non-condensing
    Temperature:
    Operating: -10ºC to 50ºC
    Storage: -20ºC to 50ºC
    OS compatibility Windows® 2000-SP4  ，Windows® XP  ，Windows® Vista, Windows®7, Windows®8, Windows®10, and Linux®
    Hardware Dimension: 193.2*166*104.3mm
    Net Weight: 1.30Kg  Gross Weight: 2.11Kg
    Warranty 1 year warrany, extensible

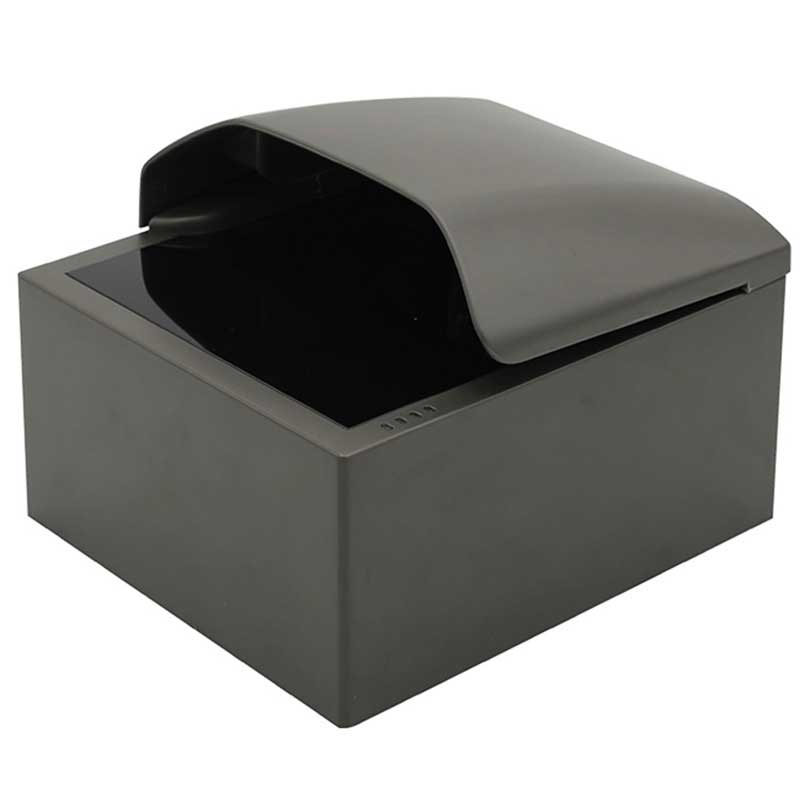

  • KR530 Passport Scanner
    RFID Reading OCR Processing Visible Image IR Image UV Image Auto-Trigger
    √ √ √ √ √ √
    Detalis
    Illumination sources Visible, IR(850nm), UV(365nm)
    Anti-glare Elimination of glare from holographic anti-counterfeiting film and reflection of light
    Image Acquisition Active scan area: 127mm x 88mm
    CMOS, 500 Megapixels (2592*1944)
    Imaging Color Depth: 24 bits/pixels
    Resolution: 500 DPI
    Image Format: JPEG, BMP, PNG
    Get the headshot from the chip
    Crop for Headshot Cropping of a document headshot image from a general image
    OCR Recognition Support extract data and image from ICAO 9303 Standard compliant documents and other Non-ICAO 9303 Standard compliant document, like ID card, Driver's License, Exit-entry Permit to HK/Macau, and etc by OCR
    Barcode:
    1D: Code 128, Code 39, EAN-13, and etc
    2D: PDF417, QR, DataMatrix™, and etc
    Scanning speed less than 1 second
    RFID Read and write contactless ICs according to ISO/IEC 14443-S (Type A/B)
    Support e-passport Basic Access Control(BAC)
    Support active/passive authentication
    Machine Readable Zone ICAO 9303 Standard compliant documents:
    ID-1
    ID-2
    ID-3
    Non-ICAO 9303 Standard compliant documents issued by China
    IP Rating IP50
    Data Communication Compatible USB 2.0, USB 3.0, PC/SC
    Communication Speed Up to 848kbps
    Auto-trigger Automatic detection of a document in a scanning area
    Auto-classification Automatic recognition of a ID document type
    Status Indicators Four status indicator LEDs (for Power, Ready, Error, and Warning)
    Support customize indicators
    Sound Buzzer
    Software Complete OCR SDK including DLLs, OCXs, Websocket, and Demo program
    Programming Language:
    VC, VB, C#, Java, etc. Provide OCR SDK for Linux.
    Power Input AC 100~240V 50~60Hz, 0.8A
    Output: DC 12V, 2A
    Environmental Humidity: 20% to 95% non-condensing
    Temperature:
    Operating: -10ºC to 50ºC
    Storage: -20ºC to 50ºC
    OS compatibility Windows® 2000-SP4  ，Windows® XP  ，Windows® Vista, Windows®7, Windows®8, Windows®10, and Linux®
    Hardware Dimension: 193.2*166*104.3mm
    Net Weight: 1.30Kg  Gross Weight: 2.11Kg
    Warranty 1 year warrany, extensible

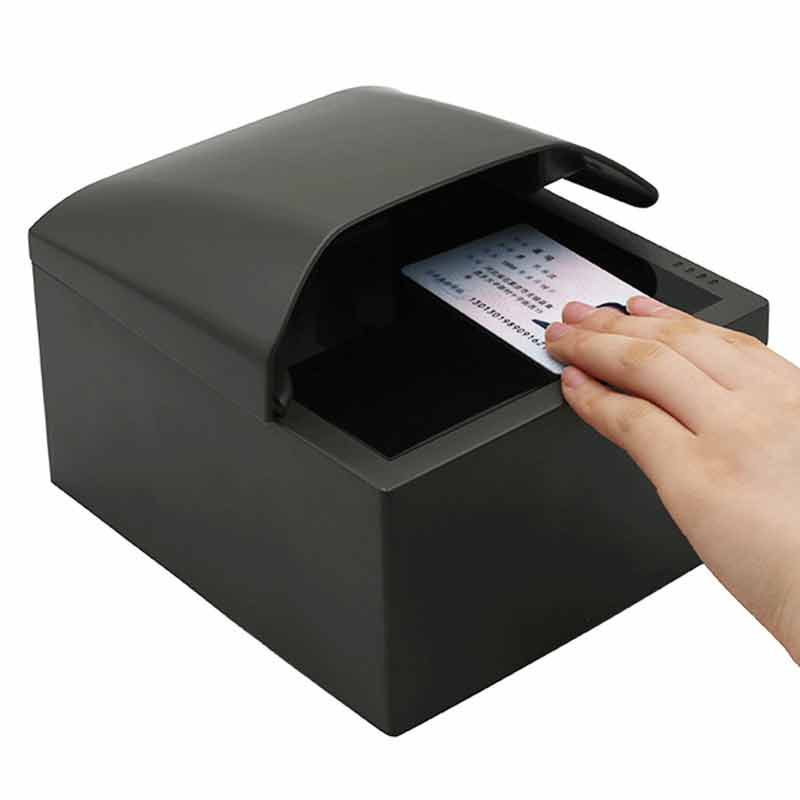

  • KR530(B) Passport Scanner
    RFID Reading OCR Processing Visible Image IR Image UV Image Auto-Trigger
    - √ √ √ √ √
    Detalis
    Illumination sources Visible, IR(850nm), UV(365nm)
    Anti-glare Elimination of glare from holographic anti-counterfeiting film and reflection of light
    Image Acquisition Active scan area: 127mm x 88mm
    CMOS, 500 Megapixels (2592*1944)
    Imaging Color Depth: 24 bits/pixels
    Resolution: 500 DPI
    Image Format: JPEG, BMP, PNG
    Get the headshot from the chip
    Crop for Headshot Cropping of a document headshot image from a general image
    OCR Recognition Support extract data and image from ICAO 9303 Standard compliant documents and other Non-ICAO 9303 Standard compliant document, like ID card, Driver's License, Exit-entry Permit to HK/Macau, and etc by OCR
    Barcode:
    1D: Code 128, Code 39, EAN-13, and etc
    2D: PDF417, QR, DataMatrix™, and etc
    Scanning speed less than 1 second
    RFID

    Read Smart Card complied with ISO/IEC 7816
    Read and write contactless ICs according to ISO/IEC 14443-S (Type A/B)
    Support e-passport Basic Access Control(BAC)
    Support active/passive authentication
    QR Code Recognition and

    Decoding

    Read barcodes on printed paper tickets and electronic tickets
    Machine Readable Zone ICAO 9303 Standard compliant documents:
    ID-1
    ID-2
    ID-3
    Non-ICAO 9303 Standard compliant documents issued by China
    IP Rating IP50
    Data Communication Compatible USB 2.0, USB 3.0, PC/SC
    Communication Speed Up to 848kbps
    Auto-trigger Automatic detection of a document in a scanning area
    Auto-classification Automatic recognition of a ID document type
    Status Indicators Four status indicator LEDs (for Power, Ready, Error, and Warning)
    Support customize indicators
    Sound Buzzer
    Software Complete OCR SDK including DLLs, OCXs, Websocket, and Demo program
    Programming Language:
    VC, VB, C#, Java, etc. Provide OCR SDK for Linux.
    Power Input AC 100~240V 50~60Hz, 0.8A
    Output: DC 12V, 2A
    Environmental Humidity: 20% to 95% non-condensing
    Temperature:
    Operating: -10ºC to 50ºC
    Storage: -20ºC to 50ºC
    OS compatibility Windows® 2000-SP4  ，Windows® XP  ，Windows® Vista, Windows®7, Windows®8, Windows®10, and Linux®
    Hardware Dimension: 169*193*104.3mm
    Net Weight: 1.30Kg  Gross Weight: 2.11Kg
    Warranty 1 year warrany, extensible
  • KR500(C) ID Card Scanner
    RFID Reading OCR Processing Visible Image IR Image UV Image Auto-Trigger
    √ √ √ √ √ √
    Detalis
  • Ultra-Thin Embedded Passport Reader
    RFID Reading OCR Processing Auto-Trigger Barcode Recognition Light type Supported Resolutions
    √ √ √ √ Visible light, infrared light, ultraviolet light 2048×1536、2592×1944
    Detalis
    Parameter Name Detailed Description
    Light Source Multi-band light source: includes visible light, infrared 850nm, UV 365nm; UV exposure intensity can be adjusted
    Anti-glare Function Ensures accurate document color without distortion, and removes the influence of anti-counterfeiting film and glare
    Image Capture Capture area 127*88 mm, sensor CMOS 5MP（2592* 1944） resolution 500 DPI, 24-bit clear color photos of the full page of passport documents
    Image Saving Images captured under visible (white), infrared, and ultraviolet light can be saved in BMP, PNG, or JPEG formats without reflective light spots; electronic headshots can also be saved from chip-enabled IDs.
    Document Image Rotation Supports automatic document rotation function;
    Can make any direction into the documents, image acquisition after the rotation of the corrected are the positive direction of the display
    Human Face Detection Cropped image with face and head areas intact, non-photographic areas are small in the image, and the photo is free of photographic occlusion
    Multi-band Image Recognition Support ICAO9303 standard passport, visa and other travel documents image capture and information recognition;
    Support ICAO9303 standard e-passport card reading;
    Support ISO 14443 Type A/B type card reading.
    E-passport Chip Reading Support basic access control (BAC, PACE) for e-passport
    Support passive authentication (PA) of e-passport to verify the authenticity of document information.
    Support e-Passport Active Authentication (AA) to verify the authenticity of document chips.
    Second Generation ID Chip Reading Supports the reading and authentication of second-generation ID cards with BAC authentication
    Machine-Readable Zone (MRZ) Reads all ICAO-compliant machine-readable travel documents, as well as non-ICAO-compliant documents issued in China.And parses machine readable code (MRZ) information.
    Barcode Recognition Supports recognition of 1D barcodes such as Code 128, Code 39, EAN-13; supports 2D barcodes such as PDF417, QR, DataMatrix
    Camera Support recognition of paper boarding passes, electronic boarding passes, electronic ID card recognition, electronic driver's license recognition, scenic area electronic tickets and other electronic QR codes on various cell phones; photo recognition speed of less than 1 second; support for ultraviolet light brightness adjustment
    Expansion Features Support to enable the document to take out, callback mode, refused to recognize the function;
    Support to enable security feature detection, RFID card reading settings and other expanded settings;
    Supports the removal of complex background settings, resolution settings, enable barcode recognition.
    Operation Mode Card documents can be read at any position in the reading window triggered reading; machine readable code page skewed or upside down does not affect the reading results
    Protection Level IP50
    Data Communication Supports PC/SC protocol (including driverless mode), provides USB2.0 and USB3.0 ports; supports USB extension development and can be connected to handheld devices.
    Communication Rate Maximum rate of 848 Kbps
    Automatic triggering Support for automatic triggering of ID card reading by sensing the ID card
    Automatic classification The system automatically categorizes documents.
    Indicator Lights Includes power indicator, ready indicator, error indicator and warning indicator; support indicator working state customization
    Buzzer Built-in Buzzer
    Software Development Provide windows system software development kit for secondary development call;
     Provide in the form of Dll, OCX, WebSocket, and call routines in VC, VB, C#, Java and other languages;
    Provide 32-bit and 64-bit SDK development packages for Linux and Android.
    Power Supply Use external standard power adapter, Power adapter specification;
    Input AC 100~240V 50-60Hz 0.8A; Output DC 12V 2A
    Operating Environment Humidity: 20% to 95% (non-condensing); temperature: -10°C to 50°C (operation); -20°C to 50°C (storage)
    Operating System Compatible with Windows® 2000-SP4, Windows® XP, Windows® Vista, Windows® 7, Windows® 8, Windows® 10, and Linux systems; Support domestic operating system: Kirin, Unicom.
    Supported Domestic CPU Supports CPUs such as Longxin,Zhaoxin, Fetion, etc.
    Physical Dimensions Outer dimensions: 190.08* 143* 68.25mm (lengthwidthheight)
    Service and Warranty Provides 365-day/24-hour phone, email, and online technical support; one-year hardware warranty, lifetime maintenance
