Product Passport Reader Scanner EPR6000 passport reader

Function Introduction

Identify multiple passports

Supports reading e-passports, native passports and other passports of more than 100 countries

Identify multiple documents

Supports the reading of more than 80 kinds of documents including domestic and foreign driver's licenses, visas, electronic homecoming permits, electronic Taiwan compatriots' permits, Hong Kong, Macao and Taiwan ID cards, Mainland permits for Hong Kong and Macao residents, and Mainland permits for Taiwan residents

Multiple reading methods

Support three reading methods: pure photo OCR recognition, pure card reading, photo + card reading

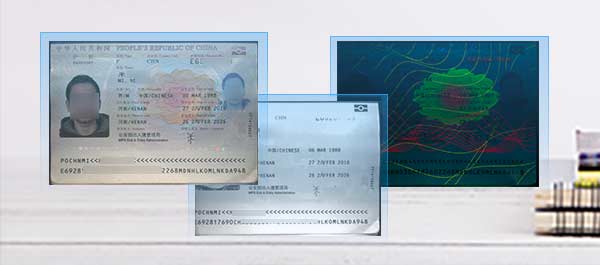

Multispectral imaging

Passport reader supports output of visible light, infrared light, ultraviolet light image

Extract personal avatars

The passport reader supports the extraction of personal avatars and chip avatars on the surface of documents

Support certificate authenticity inspection

Supports various authenticity features such as ultraviolet light feature inspection, infrared light feature inspection, chip data inspection, OCR data and electronic chip content cross-validation

Automatic Trigger, Automatic Reading and Classification

RFID reading supports automatic identification and classification of multiple certificates, automatic reading of certificate information and entry of certificate information into the system

Recognition of barcode and QR code

Passport reader supports identification of barcode and QR code (including mobile QR code)

Certificate Reading Within Few Seconds, High Accuracy

The e-passport card reading time is less than 3 seconds, the second-generation card reading time is less than 1 second, the identification accuracy rate of the document is as high as 99.8%, and the communication rate supports up to 848 Kbps

Support Secondary Development

Provide software development packages for windows, Linux and Android systems for secondary development; Provide calling routines in VC, VB, c#, Java and other languages

Anti-glare Interference

Remove the influence of anti-counterfeiting film and reflections to ensure that the color of the document is not distorted

System Compatibility and Strong Applicability

It can be integrated into various management application systems and used in various scenarios such as hotels, travel agencies, visitor management systems, airports, high-speed rail, customs, inspection and quarantine, diplomacy, public security, exhibitions, etc.

Product Superiority

Support Xinchuang PC operating system
Passport reader supports Feiteng, Loongson, Zhaoxin and other chips, as well as domestically produced systems such as Kirin system and Tongxin UOS, and the price is independently controllable
Snap connection, high quality material selection
Silver gray collocation, exquisite and compact, curve design, full buckle connection, solid quality, 15 ° passport guide slot, professional high borosilicate glass, material selection, friction resistance, strong stability
Independent research and development, safe and reliable
OCR certificate recognition, embedded software development, structural design, RFID card reading and debugging, image forgery detection and other completely independent research and development, safe and reliable
Anti-metal and signal interference
Dual antenna design to prevent signal interference, anti-metal interference, can be integrated into various metal equipment
Flexible configuration of reading mode
Under different reading modes, the card reading rate, the displayed text information and picture information are different, which are flexibly configured and suitable for different scenarios.
Qualified enterprise with strong strength
Passed various industry certifications such as TravelSky certification, inspection report of the Ministry of Public Security, information security management system certification, and international certifications such as CE and FCC
Customizable services
Passport readers can add new types of documents to identify different countries according to different needs of customers

Application Scenarios

  • Government and Enterprise Passport Management System for Business
Government and Enterprise Passport Management System for Business

For public servants who need to go abroad / return to China for official business, when issuing personal passports for official business, the real name system shall be centrally registered and managed, and the passports shall be issued uniformly. The passport reader shall be applied to the government enterprise official passport management system to improve the efficiency of real name system registration and management.

Case

Wintone passport reader applied to Ministry
Passport readers are used in customs clearance systems
Wintone passport reader assists entry and exit border inspection
Passport readers upgrade banking business intelligence
Passport readers are used in major airports
Passport reader enhances real-name system efficiency
Passport reader helps hotel smart transformation
Use passport readers to optimize travel check-in

Product parameters

  • EPR5100(I) Passport Reader
    RFID Reading OCR Processing Visible Image IR Image UV Image Auto-Trigger
    - √ √ √ √ √
    Detalis
    Project Description
    Image Acquisition Active scan area: 127mm x 96mm
    CMOS, 500 Megapixels （2048*1536）
    Resolution: 500 DPI
    Illumination sources Multi-band light source:
    Visible, IR(850nm)
    OCR Recognition Support extract data and image from ICAO 9303 Standard compliant documents and other Non-ICAO 9303 Standard compliant document, like ID card, Driver's License, Passport, Exit-entry Permit to HK/Macau, and etc by OCR
    Support 1D, 2D barcode recognition
    Scanning speed less than 1 second
    Data communication The data communication interface is USB 2.0
    Support USB interface expansion, can connect other USB devices on the device
    Auto-trigger Automatic detection of a document in a scanning area
    Status Indicators Four status indicator LEDs (for Power, Ready, Error, and Warning)
    Support customize indicators
    Software Complete OCR SDK including DLLs, OCXs
    Programming Language:
    VC, VB, C#, Java, etc.
    Power Input AC 100~240V 50~60Hz, 0.8A
    Output: DC 12V, 2A
    Environmental Humidity: 20% to 95% non-condensing
    Temperature:
    Operating: -10ºC to 50ºC
    Storage: -20ºC to 50ºC
    Hardware  Dimension: 248*216*152mm
    Net Weight: 1.5kg  Gross Weight: 2.7kg
    Movement available Movement available for flush mounting
    The whole machine has no moving parts, and the reliability is strong
    Warranty Provide 365*24 telephone, email, online technical support
    One-year hardware warranty, lifetime maintenance
  • PSPR4200(I) Passport Reader
    RFID Reading OCR Processing Visible Image IR Image UV Image Auto-Trigger
    - √ √ √ - √
    Detalis
    Project Description
    Image Acquisition Active scan area: 127mm x 96mm
    CMOS, 500 Megapixels （2048*1536）
    Resolution: 390 DPI
    Illumination sources Multi-band light source:
    Visible, IR(850nm), UV
    Document identification (OCR) Support image collection and information recognition of ID card, driver's license, passport, Hong Kong and Macao pass, Taiwan compatriot card, driving license and other ID cards
    Support image acquisition and information recognition of ICAO 9303 standard passport, visa and other travel documents, including machine-readable code and other layout information
    Support 1D and 2D barcode recognition
    Photo recognition speed is less than 1s
    E-passport card reading Support ICAO 9303 standard e-passport card reading, and the card reading time is less than 4 seconds
    Support ISO 14443 type A / b card reading
    Support basic access control (BAC) of e-passport
    Support passive authentication of e-passport and verify the authenticity of certificate information
    Support active authentication of e-passport and verify the authenticity of certificate chip
    Data communication The data communication interface is USB 2.0
    Support USB interface expansion, can connect other USB devices on the device
    Auto-trigger Automatic detection of a document in a scanning area
    Status Indicators Four status indicator LEDs (for Power, Ready, Error, and Warning)
    Support customize indicators
    Software Complete OCR SDK including DLLs, OCXs
    Programming Language: VC, VB, C#, Java, etc.
    Power Input AC 100~240V 50~60Hz, 0.8A
    Output: DC 12V, 2A
    Environmental Humidity: 20% to 95% non-condensing
    Temperature:
    Operating: -10ºC to 50ºC
    Storage: -20ºC to 50ºC
    Hardware  Dimension: 248*216*152mm
    Net Weight: 1.5kg  Gross Weight: 2.7kg
    Movement available Movement available for flush mounting
    The whole machine has no moving parts, and the reliability is strong
    Warranty Provide 365*24 telephone, email, online technical support
    One-year hardware warranty, lifetime maintenance
  • PSPR1000(I) Passport Reader
    RFID Reading OCR Processing Visible Image IR Image UV Image Auto-Trigger
    - - √ √ - √
    Detalis
    Project Description
    Image Acquisition Active scan area: 127mm x 96mm
    CMOS, 500 Megapixels （2048*1536）
    Resolution: 500 DPI
    Illumination sources Multi-band light source:
    Visible, IR(850nm)
    Document identification (OCR) Support image collection and information recognition of ID card, driver's license, passport, Hong Kong and Macao pass, Taiwan compatriot card, driving license and other ID cards
    Support image acquisition and information recognition of ICAO 9303 standard passport, visa and other travel documents, including machine-readable code and other layout information
    Support 1D and 2D barcode recognition
    Photo recognition speed is less than 1s
    E-passport card reading Support ICAO 9303 standard e-passport card reading, and the card reading time is less than 4 seconds
    Support ISO 14443 type A / b card reading
    Support basic access control (BAC) of e-passport
    Support passive authentication of e-passport and verify the authenticity of certificate information
    Support active authentication of e-passport and verify the authenticity of certificate chip
    Data communication The data communication interface is USB 2.0
    Support USB interface expansion, can connect other USB devices on the device
    Auto-trigger Automatic detection of a document in a scanning area
    Status Indicators Four status indicator LEDs (for Power, Ready, Error, and Warning)
    Support customize indicators
    Software Complete OCR SDK including DLLs, OCXs
    Programming Language:
    VC, VB, C#, Java, etc.
    Power Input AC 100~240V 50~60Hz, 0.8A
    Output: DC 12V, 2A
    Environmental Humidity: 20% to 95% non-condensing
    Temperature:
    Operating: -10ºC to 50ºC
    Storage: -20ºC to 50ºC
    Hardware   Dimension: 248*216*152mm
    Net Weight: 1.4kg  Gross Weight: 2.6kg
    Movement available Movement available for flush mounting
    The whole machine has no moving parts, and the reliability is strong
    Warranty Provide 365*24 telephone, email, online technical support
    One-year hardware warranty, lifetime maintenance
  • EPR6000 passport reader
    RFID Reading OCR Processing Visible Image IR Image UV Image Auto-Trigger
    √ √ √ √ √ √
    Detalis
    Illumination sourcesVisible, IR(850nm), UV(365nm)
    Anti-glareElimination of glare from holographic anti-counterfeiting film and reflection of light
    Image AcquisitionActive scan area: 127mm x 88mm
    CMOS, 500 Megapixels (2592*1944)
    ImagingColor Depth: 24 bits/pixels
    Resolution: 500 DPI
    Image Format: JPEG, BMP, PNG
    Get the headshot from the chip
    Crop for Headshot

    Cropping of a document headshot image from a general image

    Support image acquisition and information recognition of ID cards, driver's licenses, passports, Hong Kong and Macao passes, Taiwan ID cards, driving licenses and other ID cards

    OCR RecognitionSupport extract data and image from ICAO 9303 Standard compliant documents and other Non-ICAO 9303 Standard compliant document, like ID card, Driver's License, Passport, Exit-entry Permit to HK/Macau, and etc by OCR
    Barcode:
    1D: Code 128, Code 39, EAN-13, and etc
    2D: PDF417, QR, DataMatrix™, and etc
    Scanning speed less than 1 second
    RFIDRead and write contactless ICs according to ISO/IEC 14443-S (Type A/B)
    Support e-passport Basic Access Control(BAC)&Extended Access Control(EAC)
    Support active/passive authentication
    Machine Readable ZoneICAO 9303 Standard compliant documents:
    ID-1
    ID-2
    ID-3
    Non-ICAO 9303 Standard compliant documents issued by China
    IP RatingIP50
    Data CommunicationCompatible USB 2.0, USB 3.0, PC/SC
    Communication SpeedUp to 848kbps
    Auto-triggerAutomatic detection of a document in a scanning area
    Auto-classificationAutomatic recognition of a ID document type
    Status IndicatorsFour status indicator LEDs (for Power, Ready, Error, and Warning)
    Support customize indicators
    SoundBuzzer
    SoftwareComplete OCR SDK including DLLs, OCXs, Websocket, and Demo program
    Programming Language:
    VC, VB, C#, Java, etc. Provide OCR SDK for Linux.
    PowerInput AC 100~240V 50~60Hz, 0.8A
    Output: DC 12V, 2A
    EnvironmentalHumidity: 20% to 95% non-condensing
    Temperature:
    Operating: -10ºC to 50ºC
    Storage: -20ºC to 50ºC
    OS compatibilityWindows® 2000-SP4  ，Windows® XP  ，Windows® Vista, Windows®7, Windows®8, Windows®10, and Linux®
    HardwareDimension: 198*175*138mm
    Net Weight: 1.25Kg  Gross Weight: 1.75Kg
    Warranty1 year warrany, extensible
  • TH-PR180 Passport Reader
    RFID Reading OCR Processing Visible Image IR Image UV Image Auto-Trigger
    - - √ √ - √
    Detalis
    Illumination sourcesVisible, IR(850nm)
    Anti-glareElimination of glare from holographic anti-counterfeiting film and reflection of light
    Image AcquisitionActive scan area: 127mm x 88mm
    CMOS, 500 Megapixels (2592*1944)
    ImagingColor Depth: 24 bits/pixels
    Resolution: 500 DPI
    Image Format: JPEG, BMP, PNG
    Crop for HeadshotCropping of a document headshot image from a general image
    OCR RecognitionSupport extract data and image from ICAO 9303 Standard compliant documents and other Non-ICAO 9303 Standard compliant document, like ID card, Driver's License, Passport, Exit-entry Permit to HK/Macau, and etc by OCR
    Barcode:
    1D: Code 128, Code 39, EAN-13, and etc
    2D: PDF417, QR, DataMatrix™, and etc
    Scanning speed less than 1 second
    RFIDRead and write contactless ICs according to ISO/IEC 14443-S (Type A/B)
    Support e-passport Basic Access Control(BAC)&Extended Access Control(EAC)
    Support active/passive authentication
    Machine Readable ZoneICAO 9303 Standard compliant documents:
    ID-1
    ID-2
    ID-3
    Non-ICAO 9303 Standard compliant documents issued by China
    IP RatingIP50
    Data CommunicationCompatible USB 2.0, USB 3.0, PC/SC
    Communication SpeedUp to 848kbps
    Auto-triggerAutomatic detection of a document in a scanning area
    Auto-classificationAutomatic recognition of a ID document type
    Status IndicatorsFour status indicator LEDs (for Power, Ready, Error, and Warning)
    Support customize indicators
    SoundBuzzer
    SoftwareComplete OCR SDK including DLLs, OCXs, Websocket, and Demo program
    Programming Language:
    VC, VB, C#, Java, etc. Provide OCR SDK for Linux.
    PowerInput AC 100~240V 50~60Hz, 0.8A
    Output: DC 12V, 2A
    EnvironmentalHumidity: 20% to 95% non-condensing
    Temperature:
    Operating: -10ºC to 50ºC
    Storage: -20ºC to 50ºC
    OS compatibilityWindows® 2000-SP4  ，Windows® XP  ，Windows® Vista, Windows®7, Windows®8, Windows®10, and Linux®
    HardwareDimension: 198*175*138mm
    Net Weight: 1.25Kg  Gross Weight: 1.75Kg
    Warranty1 year warrany, extensible
  • TH-PR210 Passport Reader
    RFID Reading OCR Processing Visible Image IR Image UV Image Auto-Trigger
    - √ √ √ √ √
    Detalis
    Illumination sources Visible, IR(850nm)
    Anti-glare Elimination of glare from holographic anti-counterfeiting film and reflection of light
    Image Acquisition Active scan area: 127mm x 88mm
    CMOS, 500 Megapixels (2592*1944)
    Imaging Color Depth: 24 bits/pixels
    Resolution: 500 DPI
    Image Format: JPEG, BMP, PNG
    Crop for Headshot Cropping of a document headshot image from a general image
    OCR Recognition Support extract data and image from ICAO 9303 Standard compliant documents and other Non-ICAO 9303 Standard compliant document, like ID card, Driver's License, Passport, Exit-entry Permit to HK/Macau, and etc by OCR
    Barcode:
    1D: Code 128, Code 39, EAN-13, and etc
    2D: PDF417, QR, DataMatrix™, and etc
    Scanning speed less than 1 second
    RFID Read and write contactless ICs according to ISO/IEC 14443-S (Type A/B)
    Support e-passport Basic Access Control(BAC)&Extended Access Control(EAC)
    Support active/passive authentication
    Second-generation ID card reader Support the second-generation resident ID card RFID card reading, the card reading time is less than 1 second
    Machine Readable Zone ICAO 9303 Standard compliant documents:
    ID-1
    ID-2
    ID-3
    Non-ICAO 9303 Standard compliant documents issued by China
    IP Rating IP50
    Data Communication Compatible USB 2.0, USB 3.0, PC/SC
    Communication Speed Up to 848kbps
    Auto-trigger Automatic detection of a document in a scanning area
    Auto-classification Automatic recognition of a ID document type
    Status Indicators Including power indicator, ready indicator, error indicator and warning indicator Support indicator working status customization
    Built-in buzzer
    Sound Buzzer
    Software Complete OCR SDK including DLLs, OCXs, Websocket, and Demo program
    Programming Language:
    VC, VB, C#, Java, etc. Provide OCR SDK for Linux.
    Power Input AC 100~240V 50~60Hz, 0.8A
    Output: DC 12V, 2A
    Environmental Humidity: 20% to 95% non-condensing
    Temperature:
    Operating: -10ºC to 50ºC
    Storage: -20ºC to 50ºC
    OS compatibility Windows® 2000-SP4  ，Windows® XP  ，Windows® Vista, Windows®7, Windows®8, Windows®10, and Linux®
    Hardware Dimension: 198*175*138mm
    Net Weight: 1.25Kg  Gross Weight: 1.75Kg
    Warranty 1 year warrany, extensible
  • TH-PR410 Passport Reader
    RFID Reading OCR Reading Visible Image IR Image UV Image Auto-Trigger
    - √ √ √ - √
    Detalis
    Illumination sourcesVisible, IR(850nm)
    Anti-glareElimination of glare from holographic anti-counterfeiting film and reflection of light
    Image AcquisitionActive scan area: 127mm x 88mm
    CMOS, 500 Megapixels (2592*1944)
    ImagingColor Depth: 24 bits/pixels
    Resolution: 500 DPI
    Image Format: JPEG, BMP, PNG
    Get the headshot from the chip
    Crop for HeadshotCropping of a document headshot image from a general image
    OCR RecognitionSupport extract data and image from ICAO 9303 Standard compliant documents and other Non-ICAO 9303 Standard compliant document, like ID card, Driver's License, Passport, Exit-entry Permit to HK/Macau, and etc by OCR
    Barcode:
    1D: Code 128, Code 39, EAN-13, and etc
    2D: PDF417, QR, DataMatrix™, and etc
    Scanning speed less than 1 second
    RFIDRead and write contactless ICs according to ISO/IEC 14443-S (Type A/B)
    Support e-passport Basic Access Control(BAC)&Extended Access Control(EAC)
    Support active/passive authentication
    Machine Readable ZoneICAO 9303 Standard compliant documents:
    ID-1
    ID-2
    ID-3
    Non-ICAO 9303 Standard compliant documents issued by China
    IP RatingIP50
    Data CommunicationCompatible USB 2.0, USB 3.0, PC/SC
    Communication SpeedUp to 848kbps
    Auto-triggerAutomatic detection of a document in a scanning area
    Auto-classificationAutomatic recognition of a ID document type
    Status IndicatorsFour status indicator LEDs (for Power, Ready, Error, and Warning)
    Support customize indicators
    SoundBuzzer
    SoftwareComplete OCR SDK including DLLs, OCXs, Websocket, and Demo program
    Programming Language:
    VC, VB, C#, Java, etc. Provide OCR SDK for Linux.
    PowerInput AC 100~240V 50~60Hz, 0.8A
    Output: DC 12V, 2A
    EnvironmentalHumidity: 20% to 95% non-condensing
    Temperature:
    Operating: -10ºC to 50ºC
    Storage: -20ºC to 50ºC
    OS compatibilityWindows® 2000-SP4  ，Windows® XP  ，Windows® Vista, Windows®7, Windows®8, Windows®10, and Linux®
    HardwareDimension: 198*175*138mm
    Net Weight: 1.25Kg  Gross Weight: 1.75Kg
    Warranty1 year warrany, extensible
  • TH-PR520 Passport Reader
    RFID Reading OCR Processing Visible Image IR Image UV Image Auto-Trigger
    - √ √ √ √ √
    Detalis
    Illumination sourcesVisible, IR(850nm), UV(365nm)
    Anti-glareElimination of glare from holographic anti-counterfeiting film and reflection of light
    Image AcquisitionActive scan area: 127mm x 88mm
    CMOS, 500 Megapixels (2592*1944)
    ImagingColor Depth: 24 bits/pixels
    Resolution: 500 DPI
    Image Format: JPEG, BMP, PNG
    Get the headshot from the chip
    Crop for Headshot

    Cropping of a document headshot image from a general image

    Support image acquisition and information recognition of ID cards, driver's licenses, passports, Hong Kong and Macao passes, Taiwan ID cards, driving licenses and other ID cards

    OCR RecognitionSupport extract data and image from ICAO 9303 Standard compliant documents and other Non-ICAO 9303 Standard compliant document, like ID card, Driver's License, Passport, Exit-entry Permit to HK/Macau, and etc by OCR
    Barcode:
    1D: Code 128, Code 39, EAN-13, and etc
    2D: PDF417, QR, DataMatrix™, and etc
    Scanning speed less than 1 second
    RFIDRead and write contactless ICs according to ISO/IEC 14443-S (Type A/B)
    Support e-passport Basic Access Control(BAC)&Extended Access Control(EAC)
    Support active/passive authentication
    Machine Readable ZoneICAO 9303 Standard compliant documents:
    ID-1
    ID-2
    ID-3
    Non-ICAO 9303 Standard compliant documents issued by China
    IP RatingIP50
    Data CommunicationCompatible USB 2.0, USB 3.0, PC/SC
    Communication SpeedUp to 848kbps
    Auto-triggerAutomatic detection of a document in a scanning area
    Auto-classificationAutomatic recognition of a ID document type
    Status IndicatorsFour status indicator LEDs (for Power, Ready, Error, and Warning)
    Support customize indicators
    SoundBuzzer
    SoftwareComplete OCR SDK including DLLs, OCXs, Websocket, and Demo program
    Programming Language:
    VC, VB, C#, Java, etc. Provide OCR SDK for Linux.
    PowerInput AC 100~240V 50~60Hz, 0.8A
    Output: DC 12V, 2A
    EnvironmentalHumidity: 20% to 95% non-condensing
    Temperature:
    Operating: -10ºC to 50ºC
    Storage: -20ºC to 50ºC
    OS compatibilityWindows® 2000-SP4  ，Windows® XP  ，Windows® Vista, Windows®7, Windows®8, Windows®10, and Linux®
    HardwareDimension: 198*175*138mm
    Net Weight: 1.25Kg  Gross Weight: 1.75Kg
    Warranty1 year warrany, extensible
  • TH-PR630 Passport Reader
    RFID Reading OCR Processing Visible Image IR Image UV Image Auto-Trigger
    √ √ √ √ √ √
    Detalis
    Illumination sources Visible, IR(850nm), UV(365nm)
    Anti-glare Elimination of glare from holographic anti-counterfeiting film and reflection of light
    Image Acquisition Active scan area: 127mm x 88mm
    CMOS, 500 Megapixels (2592*1944)
    Imaging Color Depth: 24 bits/pixels
    Resolution: 500 DPI
    Image Format: JPEG, BMP, PNG
    Get the headshot from the chip
    Crop for Headshot The face and head area of the cropped image is complete, and the non-photo area occupies a small proportion in the image
    Photo without flare
    OCR Recognition Support extract data and image from ICAO 9303 Standard compliant documents and other Non-ICAO 9303 Standard compliant document, like ID card, Driver's License, Passport, Exit-entry Permit to HK/Macau, and etc by OCR
    Barcode:
    1D: Code 128, Code 39, EAN-13, and etc
    2D: PDF417, QR, DataMatrix™, and etc
    Scanning speed less than 1 second
    Second generation ID card reading Support RF identification card reading of second-generation resident ID card, with card reading time less than 1 second
    RFID Can read all ICAO-compliant documents and non-ICAO-compliant documents issued by China
    Parse machine readable code information
    Support active/passive authentication
    Machine Readable Zone ICAO 9303 Standard compliant documents:
    ID-1
    ID-2
    ID-3
    Non-ICAO 9303 Standard compliant documents issued by China
    IP Rating IP50
    Data Communication Compatible USB 2.0, USB 3.0, PC/SC
    Communication Speed Up to 848kbps
    Auto-trigger Automatic detection of a document in a scanning area
    Auto-classification Automatic recognition of a ID document type
    Status Indicators Four status indicator LEDs (for Power, Ready, Error, and Warning)
    Support customize indicators
    Sound Buzzer
    Software Complete OCR SDK including DLLs, OCXs, Websocket, and Demo program
    Programming Language:
    VC, VB, C#, Java, etc. Provide OCR SDK for Linux.
    Power Input AC 100~240V 50~60Hz, 0.8A
    Output: DC 12V, 2A
    Environmental Humidity: 20% to 95% non-condensing
    Temperature:
    Operating: -10ºC to 50ºC
    Storage: -20ºC to 50ºC
    OS compatibility Windows® 2000-SP4  ，Windows® XP  ，Windows® Vista, Windows®7, Windows®8, Windows®10, and Linux®
    Hardware Dimension: 198*175*138mm
    Net Weight: 1.25Kg  Gross Weight: 1.75Kg
    Warranty 1 year warrany, extensible
  • QR5000 Passport Reader
    RFID Reading OCR Processing Visible Image IR Image UV Image Auto-Trigger
    √ √ √ √ √ √
    Detalis
    Illumination sources Visible, IR(850nm), UV(365nm)
    Anti-glare Elimination of glare from holographic anti-counterfeiting film and reflection of light
    Image Acquisition Active scan area: 127mm x 88mm
    CMOS, 500 Megapixels (2592*1944)
    Imaging Color Depth: 24 bits/pixels
    Resolution: 500 DPI
    Image Format: JPEG, BMP, PNG
    Get the headshot from the chip
    Crop for Headshot Cropping of a document headshot image from a general image
    OCR Recognition Support extract data and image from ICAO 9303 Standard compliant documents and other Non-ICAO 9303 Standard compliant document, like ID card, Driver's License, Passport, Exit-entry Permit to HK/Macau, and etc by OCR
    Barcode:
    1D: Code 128, Code 39, EAN-13, and etc
    2D: PDF417, QR, DataMatrix™, and etc
    Scanning speed less than 1 second
    RFID Read and write contactless ICs according to ISO/IEC 14443-S (Type A/B)
    Support e-passport Basic Access Control(BAC)&Extended Access Control(EAC)
    Support active/passive authentication
    Machine Readable Zone ICAO 9303 Standard compliant documents:
    ID-1
    ID-2
    ID-3
    Non-ICAO 9303 Standard compliant documents issued by China
    IP Rating IP50
    Data Communication Compatible USB 2.0, USB 3.0, PC/SC
    Communication Speed Up to 848kbps
    Auto-trigger Automatic detection of a document in a scanning area
    Auto-classification Automatic recognition of a ID document type
    Status Indicators Four status indicator LEDs (for Power, Ready, Error, and Warning)
    Support customize indicators
    Sound Buzzer
    Software Complete OCR SDK including DLLs, OCXs, Websocket, and Demo program
    Programming Language:
    VC, VB, C#, Java, etc. Provide OCR SDK for Linux.
    Power Input AC 100~240V 50~60Hz, 0.8A
    Output: DC 12V, 2A
    Environmental Humidity: 20% to 95% non-condensing
    Temperature:
    Operating: -10ºC to 50ºC
    Storage: -20ºC to 50ºC
    OS compatibility Windows® 2000-SP4  ，Windows® XP  ，Windows® Vista, Windows®7, Windows®8, Windows®10, and Linux®
    Hardware Dimension: 198*175*138mm
    Net Weight: 1.25Kg  Gross Weight: 1.75Kg
    Warranty 1 year warrany, extensible
